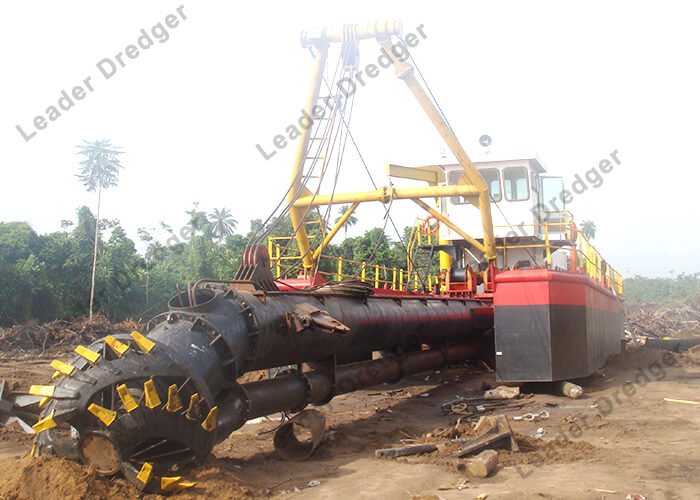

Long Production Distance, High Reliability, Easy Control Sand Dredging Lake Suciton Dredger
1. Why Choose Leader Hydraulic Lake Suction Dredger?
Leader Dredger Co., who integrates design & research, production, export and after-sale service, is a professional high quality Chinese manufacturer for cutter suction dredgers with many branch offices in Asia, Mid-East, Africa countries etc, one of the largest annual sale for cutter suction dredgers.
Leader dredger, on the march to a world famous brand name, is your ideal choice for dredging machinery!
About 18 Inch Lake Suction Dredger Hydraulic winch
To support the ladder, a hoisting winch is provided at the front of the main pontoon, which is installed on a solid foundation. The winch is hydraulically driven by the reduction gear box in the winch structure. The winch has a disc brake, which is automatically activated when the pressure drops. The winch is operated from the control room
and has a fixed speed.
For the lateral pull of the ladder, there are two winches at the front of the main pontoon, which are installed on a solid foundation. The winch is hydraulically driven by the reduction gear box in the winch structure. The winch has a disc brake, which is automatically activated when the pressure drops. The winch is operated from the control
room with variable speed.
About 18 Inch Lake Suction Dredger Hydraulic system
The hydraulic system is the most important part of the river sand dredger and bucket wheel dredger. The hydraulic system is very demanding and strict; it is the main artery of the entire sand dredger. The side traction winch of the dredger, the lifting winch and the cutting head are driven by hydraulic motors.
We use hydraulic pressure to drive the entire dredger, including winches, cutting machines, hydraulic cylinders, etc. The valve is REXROTH, and the hydraulic control system is SIEMENS PLC.
About 18 Inch Lake Suction Dredger Dredge Pump
The dredge pump is high efficiency made from wear resistant casting impeller and liners fitted on heavy duty shaft and high quality roller bearings.
The impeller is fitted on the shaft by trapezoid thread directly machine on the shaft end. The shaft sealing is a water cooled sealing that can be replaced after wear life. The impeller is a special type of double curved vanes high efficiency and wear life optimized tested in laboratory and onboard of dredgers. The impeller is fixed on the shaft
by trapezoid thread machined directly in the impeller hub.
The pump casing has a shape of a volute designed of a high efficiency and wear life optimized tested in laboratory and onboard of dredgers. The pump liners are made of high wear resistant materials and thick wall thickness to maximize the wear life. The casting covers are made from fabricated steel stiffened where necessary and
machining to fit the case and the liners.

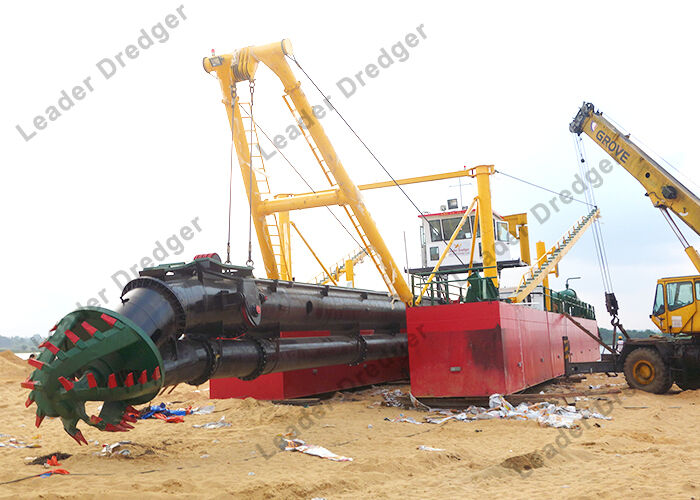

2. About Leader Dredger Lake Suction Dredger:
1. Whether the dredger is self-propelled or non-self-propelled
2. The hull is a box-shaped structure composed of multiple boxes, which is easy to install and quick to disassemble

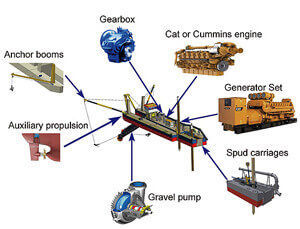

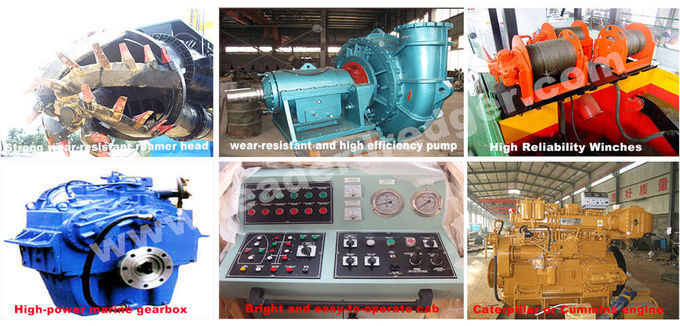

3. The equipment of the dredger includes side slip device, upper and lower cutter device, positioning pile device, deck crane, and also equipped with anchor rod and trolley device to increase capacity
4. Widely used for sand excavation, river dredging, desalination, river and land reclamation, port construction
5. The main engine is an independent form of entertainment, one main pump engine, one auxiliary hydraulic engine
6. The dredging pump is driven by the main diesel engine through a reduction gear box
7. The alternator, driven by an auxiliary diesel engine, provides power and lighting for the entire dredger. The generator set supplies power for lighting and emergency situations when not working
8. The hydraulic oil pump is driven by an auxiliary diesel engine
9. Variable speed winches, winches and hoisting winches are driven by hydraulic motors
10. The cutting head is driven by a hydraulic motor; the bearing of the cutting machine has a lubricating and sealing device
11. The dredger is moved by rotating the pendulum alternately and lifted by hydraulic cylinders
3. Leader Dredger LD3700 Lake Suction Dredger Technical Specifications
A . Dredging Features
| Standard dredging depth(m) | 14m |
| Maximum mixture capacity(m/h) | 3700m³/h |
| Solid capacity(approx) | 740m³/h |
| Dredging pump mode | 500/450mm |
B . Principal characteristics
| Overall length(m) | 35m |
| Breadth(m) | 7m |
| Draught(m) | 1.3m |
| Discharge distance(m) | 1800m |
| Total dry weight approx(MT) | 130MT |
| Ladder length | 19m |
C . Dredge pump: Australia technology Pump
| By alloy cast iron material for better abrasion resistance, abrasive, hardness, more than68HRC. | Bigger working capacity, more efficiency, driven through gearbox. |
| Maximum mixture capacity(m/h) | 3700m³/h |
| Solid capacity(approx) | 740m³/h |
D . Engine
| Main diesel engine(Cummins) | CAT C32 746kw |
| Auxilary engine | CAT C9.3 218KW |
| Total fuel consumption | ≤154kg/hr |
| Extra emergency generator set | 24kw(32Hp)
|
4. Lake Suction Dredger Production Process
Material cutting.
The thickness of the steel plate is 6 mm, which is very strong and strong enough for this type of winch dredger. We carefully cut the material of the dredger with an automatic plasma cutter.
welding.
All our workers are senior welders with welding skills to ensure that the welding is beautiful and there is no gap.
painting.
After the dredger pontoon is completed, we will paint the small winch dredger with anti-rust paint and topcoat. The paint color of the dredger can be specified according to customer requirements.
The winch dredger is assembled for sale.
We assemble and connect sand pumps, water pumps, pump engines, winches, hand frames, sand suction rubber hoses and fuel tanks.
The dredger undergoes sales testing before delivery. We started the engine and checked the working condition of the pump and winch. After ensuring that all the dredgers for sale were in the design state, we delivered the dredgers for sale.
5. Cutter Suction Dredger Desgin
| 1. Hydraulic pumps drive cutter, winches spud rams |
| 2. Main engine drives pump through gearbox |
| 3. Pump inside engineroom |
| 4. Design of high production long distance and reliability, easy control, simple maintenance |
| 5. Australian technology pump |
| 6. Famous European-brand electric system and hydraulic system |
| 7. Engine room big and cool, and easy to maintain |
| 8. Dredge can be equipped with several options such as |
| Anchor booms/Spud carriages/Increasing The Dredging Depth/Self-Propell/Pump Booster station/GPS dredging System |
6. Hydraulic System: German Brand Hydraulic Parts:
To drive: 1 cutter header, 1 ladder winch, 2 side winches,2 spud rams, 2 hydraulic pumps, and a lot of hydraulic valves The extra emergency pump can drive all hydraulic parts using the extra emergency generator set.
