18inch River Dredging Suction Dredge With International Shipbuilding Standards And Modern Engineering Technology
1. Why choose Leader Dredger:
Leader Dredger dual pump cutter suction dredger has the characteristics of strong geographic environment adaptability, simple structure, easy maintenance, reliable performance, long service life, low cost, and large workload (800 to 12000 cubic meters per day). It is a marine dredging and Ideal for channel dredging. It can also be used for salt mining in salt lakes, offshore and river dredging, hard riverbed mining, waterway improvement and development. The dredged sand after sieving and separation is pure and free of impurities, making it an ideal choice for the construction industry.
1. Equipped with Australian Warman technology dredging pump
2. The modular design can achieve rapid assembly with HID senior engineers
3. Rexroth, Vickers full hydraulic control
4. The factory provides dredger components to shorten delivery time
5. Control the working process of dredging and pumping, and transport the materials of dredging materials. Lower cost;
2. About Leader Dredger Cutter Suction Dredger:
1. Cutter suction dredge has the characteristics of strong geographic environment adaptability, simple structure, easy maintenance, reliable performance, long service life, low cost, and heavy workload (1,000 to 4,000 cubic meters per day). It is used for sand mining in sand fields and river channels. Ideal choice.
2. It can also be used for salt mining in salt lakes, offshore and river dredging, hard riverbed mining, waterway improvement and development.
3. The dredged sand after sieving and separation is pure and free of impurities, making it an ideal choice for the construction industry.
4. The cutter suction dredger can be installed together with the beneficiation equipment to extract gold, iron ore and other minerals. It has the characteristics of high automation, high extraction precision and large processing capacity. It is in a leading position in the domestic and foreign industries.
3. Leader Dredger LD3700 Dredger Ship Technical Specifications
A . Dredging Features
| Standard dredging depth(m) | 14m |
| Maximum mixture capacity(m/h) | 3700m³/h |
| Solid capacity(approx) | 740m³/h |
| Dredging pump mode | 500/450mm |
B . Principal characteristics
| Overall length(m) | 35m |
| Breadth(m) | 7m |
| Draught(m) | 1.3m |
| Discharge distance(m) | 1800m |
| Total dry weight approx(MT) | 130MT |
| Ladder length | 19m |
C . Dredge pump: Australia technology Pump
| By alloy cast iron material for better abrasion resistance, abrasive, hardness, more than68HRC. | Bigger working capacity, more efficiency, driven through gearbox. |
| Maximum mixture capacity(m/h) | 3700m³/h |
| Solid capacity(approx) | 740m³/h |
D . Engine
| Main diesel engine(Cummins) | CAT C32 746kw |
| Auxilary engine | CAT C9.3 218KW |
| Total fuel consumption | ≤154kg/hr |
| Extra emergency generator set | 24kw(32Hp)
|
4. Leader Dredger LD3700 Sand Cutter Suction Dredger Service:
1. We will provide 12 months of quality assurance of diesel engine, generator, gear box, hydraulic system and control system free of charge
2. 24-hour after-sales service.
3. Engineers can board the ship for installation and train operators
4. We have experienced and qualified technicians and engineers who can design reasonable and feasible solutions according to customer requirements and working conditions
5. Cutter Suction Dredger Desgin
| 1. Hydraulic pumps drive cutter, winches spud rams |
| 2. Main engine drives pump through gearbox |
| 3. Pump inside engineroom |
| 4. Design of high production long distance and reliability, easy control, simple maintenance |
| 5. Australian technology pump |
| 6. Famous European-brand electric system and hydraulic system |
| 7. Engine room big and cool, and easy to maintain |
| 8. Dredge can be equipped with several options such as |
| Anchor booms/Spud carriages/Increasing The Dredging Depth/Self-Propell/Pump Booster station/GPS dredging System |
6. Hydraulic System: German Brand Hydraulic Parts:
To drive: 1 cutter header, 1 ladder winch, 2 side winches,2 spud rams, 2 hydraulic pumps, and a lot of hydraulic valves The extra emergency pump can drive all hydraulic parts using the extra emergency generator set.
7.Leader Dredger Cutter Suction Dredger Customer

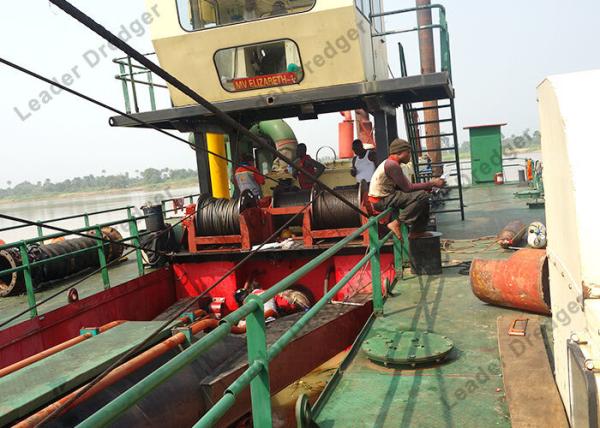

8. Cutter Suction Dredger Picture
