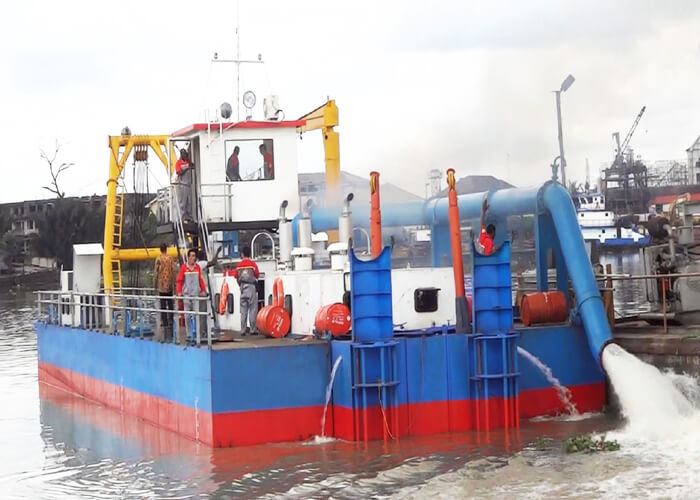

Ladder Lake Cutter Suciton Dredger

Brand Name : Leader Dredger

Model Number : LD4500

Certification : ISO 9001

Place of Origin : China

MOQ : One Dredger

Price : Free Consultation

Payment Terms : L/C, T/T

Supply Ability : 20

Delivery Time : Peak season lead time: 1-3 months

Packaging Details : In Container Or Bulk Vessel

Type : Cutter Suction Dredger

Inch : 22 ~ 20 Inch

Power Type : Diesel

Dredging Depth (m) : 15

Main engine power (kw) : 895

Auxiliary engine power (kw) : 298

Pipe diameter (mm) : 500

Application : Lake,Pond, Beach

Customized : Customized

Condition : New

Contact Now

724 Hours After-Sales Service Cutter Suciton Dredger Supplier Focus On Reasonable Design And Reliable Quality



1. Cutter Suction Dredger Description:



Leader Dredger series dredgers are self-propelled or non-self-propelled portable cutter suction dredgers. Its hull can be easily disassembled and reassembled by a box-shaped structure equipped with a horizontal displacement device, a cutting ladder lifting device, a spike device and a carrier, an anchor arm, a deck crane, etc. It is widely used in sand excavation, river dredging, dredging, river reclamation, land and port construction, etc.


1. Simple and fast assembly and disassembly. Engineers can serve abroad


2. Spare parts and floating tubes will be supported.


3. Reliable hydraulic system, easy to control


4. Efficient fuel consumption.


5. Siemens PLC control, single-person operation.



2. Leader Dredger will provide before selling the sand cutter suction dredger:



1. Consulting and design services



2. Provide program support based on customer's working conditions



3. Provide accessories recommendations based on customer requirements



4. Site installation guide



5. Overall debugging



6. Pre-job training



7. Tracking guidance service



8. Provide one year after-sales



9. Provide permanent accessories or consulting services



3. Cutter Suction Dredger Feature:



1. Strong adaptability. Cutter suction dredgers can be widely used in rivers, lakes, oceans, reservoirs, etc. for sand and mud dredging, waterway cleaning and reclamation work.



2. High efficiency. The cutter suction dredger can dredge and discharge sand at the same time, without the need for other vessels to transport.



3. Easy operation. With the help of hydraulic system and PLC control system, all dredger operations can be completed in the operation room.



4. The dredger is detachable. Therefore, they can be easily disassembled and assembled.



5. Can be customized according to customer's project requirements.



7. The dredger will use the best parts, such as the world famous Cummins engine or engine, Siemens PLC control system.



8. Professional engineers will be sent to the project site to require customers to install, debug, test and train operators of dredgers.



4.Our Cutter Suction Dredger Desgin



1. Hydraulic pumps drive cutter, winches spud rams



2. Main engine drives pump through gearbox



3. Pump inside engineroom



4. Design of high production long distance and reliability, easy control, simple maintenance



5. Australian technology pump



6. Famous European-brand electric system and hydraulic system



7. Engine room big and cool, and easy to maintain



8. Dredge can be equipped with several options



9. Such as:Anchor booms/Spud carriages/Increasing The Dredging Depth



10. Self-Propell/Pump Booster station/GPS dredging System



5. LEADER DREDGER LD4500IP TECHNICAL SPECIFICATIONS



Dredging Features

Standard dredging depth(m)

15m

capacity(m/h)

4500m³/h

Solid capacity(approx)

900m³/h

Dredging pump mode

550/500mm(22"/20")





Principal characteristics

Overall length(m)

37m

Breadth(m)

7.6m

Draught(m)

1.6m

Discharge distance(m)

1500m

Total dry weight approx(MT)

185MT

Ladder length

21m





Dredge pump: Australia technology Pump

By alloy cast iron material for better abrasion resistance, abrasive, hardness, more than68HRC. Bigger working capacity, more efficiency, driven through gearbox.

Maximum mixture capacity(m/h)

4500m³/h

Solid capacity(approx)

900m³/h





Engine

Main diesel engine(Cummins)

Cummins KTA38 895KW CAT3512C 955KW

Auxlary engine

Cummins NT8500 298KW CAT C9.3 325KW

Total fuel consumption

≤167kg/hr≤59.6kg/hr

Extra emergency generator set

30kw(40Hp)



6. About Leader Dredger Cutter Suction Dredger Parts

Ladder Lake Cutter Suciton Dredger



CUMMINS engine (primary and auxiliary)-USA
WARMAN Pump Technology - Australia
REXROTH Hydraulic System - Germany
SCHNEIDER ELECTRIC SYSTEM-Germany
The above parts have a 1-year manufacturer warranty and lifetime support.



7. About Leader Dredger Company:



Ladder Lake Cutter Suciton Dredger



Service support


Leader Dredger can provide professional maintenance support, equipment training programs, and dredging consulting services.


And manual guidance and commissioning of equipment



Reliable and efficient


Leader Dredger is known for its solid structure, reliable operation and outstanding performance. To date, Leader Dredger has provided more than 100 dredgers worldwide. With rich experience in design and production, we can provide you with ideal dredging equipment



Leader Dredger cutter suction dredger has the characteristics of strong geographical environment adaptability, simple structure, easy maintenance, reliable performance, long service life, low cost, and large workload (1000 to 4000 cubic meters per day). Ideal for sand. It can also be used for salt mining in salt lakes, sparse offshore and river channels, hard river bed mining, waterway improvement and development. The digging sand after sieving and separation is pure and free of impurities, which is an ideal choice for the construction industry.



10. Leader Dredger Cutter Suction Dredger Customer



Ladder Lake Cutter Suciton Dredger



9. Production time:



Each series of Leader Dredger dredgers will have one in stock, which is convenient for fast delivery.


But when the construction environment is complex and custom dredgers are required, we usually need 1 to 3 months to produce.



Leader Dredger cutter suciton dredger is portable and can be transported and disassembled by road, rail or sea and land.



10. Delivery:



Carried by trucks to the loading seaport, and then by bulk vessels to the destination seaport.



Ladder Lake Cutter Suciton Dredger



11. Cutter Suction Dredger

Ladder Lake Cutter Suciton Dredger
